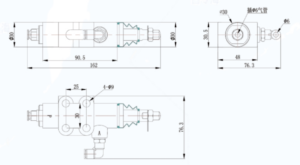

Drawings
22 limit valve XQF22
*Model: XQF22
*Product name: 22 limit valve
* Manual control, precise and sensitive operation
* Single-piece structure, compact and durable design
* Rated flow 40 L/min, large flow capacity
* Maximum pressure 160 bar, suitable for demanding applications
* Working viscosity range 12 – 400 mm²/s, compatible with a variety of fluids
* Ambient temperature range -40°C to +80°C, can work in extreme conditions
Share:
Product Description
We are a professional valve manufacturer. Please feel free to contact us.
Product Description:
1. Installed in the cab and remotely operated.
2. The valve has four working positions: lifting, midway stop, lowering and PTO.
3. The valve has beautiful shape, self-locking when stopped, clear position change and easy operation.
4. Equipped with air nozzle.
5. There is a warning light.
Product advantages:
1. Stable quality and good consistency between products.
2. Supplied and guaranteed by the manufacturer. 3.
This product is widely used in the hydraulic system of dump trucks and has excellent versatility.
4. Easy to install and maintain.
